KL61 Piston Rod Guide Ring Composite Guiding Elements

Brand Name : Kelong

Model Number : KL61

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Name : Rod Guide Ring

Material : Phenolics Aramid

Temperature (max) °C : -40/+200

Sliding Speed (max)- m/s : 1.0

Style : Hydraulic Guiding Elements

Application : Iron and steel industry / Heavy duty cylinders

Contact Now

KL61 piston-rod guide rings are composite guiding elements, produced from aramid fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems. Compared to regular composite guide rings, KL61 has a higher temperature resistance due to Aramid fabric.

Advantages

• Operating at high temperature

• The high form stability at operating temperature range

• Easy installation

• Wide range of dimensions

• Can be used in heavy and medium duty applications

Area of Application

• Iron and steel industry


• Mobile machinery


• Heavy duty cylinders

KL61 Piston Rod Guide Ring Composite Guiding Elements

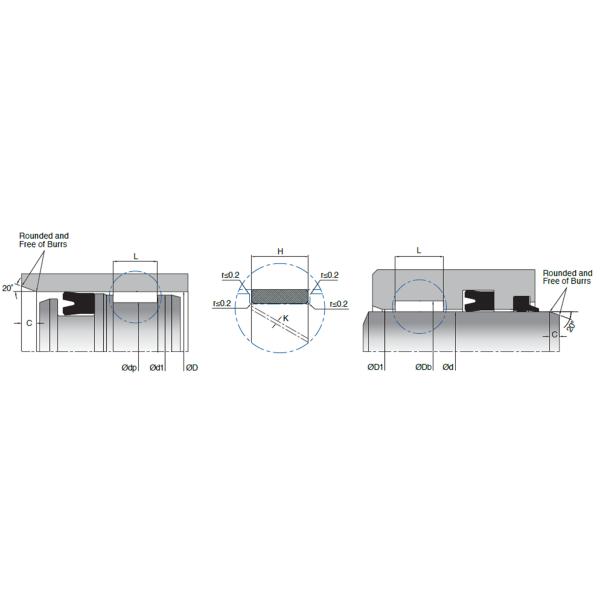

d(f8) dp(h8) Db(H8) D(H9) L (+0.2/-0) H d1 (h9) D1 (H9) MATERIAL
KL61-040 40 45 9.7 9.5 43.2 41.8 PHENOLICS ARAMID
KL61-050 50 55 9.7 9.5 53.2 51.8 PHENOLICS ARAMID
KL61-050/1 50 55 15 14.8 53.2 51.8 PHENOLICS ARAMID
KL61-055 55 60 15 14.8 58.2 56.8 PHENOLICS ARAMID
KL61-055/1 55 60 9.7 9.5 58.2 56.8 PHENOLICS ARAMID
KL61-058 58 63 9.7 9.5 61.2 59.8 PHENOLICS ARAMID
KL61-060 60 65 15 14.8 63.2 61.8 PHENOLICS ARAMID
KL61-060/1 60 65 9.7 9.5 63.2 61.8 PHENOLICS ARAMID
KL61-063 63 68 9.7 d 66.2 64.8 PHENOLICS ARAMID
KL61-063/1 63 68 15 14.8 66.2 64.8 PHENOLICS ARAMID
KL61-065 65 70 15 14.8 68.2 66.8 PHENOLICS ARAMID
KL61-065/1 65 70 9.7 9.5 68.2 66.8 PHENOLICS ARAMID
KL61-070 70 75 9.7 9.5 73.2 71.8 PHENOLICS ARAMID
KL61-070/1 70 75 15 14.8 73.2 71.8 PHENOLICS ARAMID
KL61-075 75 80 9.7 9.5 78.2 76.8 PHENOLICS ARAMID
KL61-075/1 75 80 15 14.8 78.2 76.8 PHENOLICS ARAMID
KL61-080 80 85 9.7 9.5 83.2 81.8 PHENOLICS ARAMID
KL61-080/1 80 85 15 14.8 83.2 81.8 PHENOLICS ARAMID
KL61-085 85 90 9.7 9.5 88.2 86.8 PHENOLICS ARAMID
KL61-085/1 85 90 15 14.8 88.2 86.8 PHENOLICS ARAMID
KL61-090 90 95 15 14.8 93.2 91.8 PHENOLICS ARAMID
KL61-090/1 90 95 9.7 9.5 93.2 91.8 PHENOLICS ARAMID
KL61-095 95 100 9.7 9.5 98.2 96.8 PHENOLICS ARAMID
KL61-095/1 95 100 15 14.8 98.2 96.8 PHENOLICS ARAMID
KL61-100 100 105 15 14.8 103.2 101.8 PHENOLICS ARAMID
KL61-100/1 100 105 9.7 9.5 103.2 101.8 PHENOLICS ARAMID
KL61-105 105 110 9.7 9.5 108.2 106.8 PHENOLICS ARAMID
KL61-105/1 105 110 15 14.8 108.2 106.8 PHENOLICS ARAMID
KL61-110 110 115 9.7 9.5 113.2 111.8 PHENOLICS ARAMID
KL61-110/1 110 115 15 14.8 113.2 111.8 PHENOLICS ARAMID
KL61-110/2 110 115 8.1 7.9 113.2 111.8 PHENOLICS ARAMID
KL61-115 115 120 9.7 9.5 118.2 116.8 PHENOLICS ARAMID
KL61-115/1 115 120 15 14.8 118.2 116.8 PHENOLICS ARAMID
KL61-115/2 115 120 8.1 7.9 118.2 116.8 PHENOLICS ARAMID
KL61-120 120 125 9.7 9.5 123.2 121.8 PHENOLICS ARAMID
KL61-120/1 120 125 15 14.8 123.2 121.8 PHENOLICS ARAMID
KL61-120/2 120 125 8.1 7.9 123.2 121.8 PHENOLICS ARAMID
KL61-125 125 130 9.7 9.5 128.2 126.8 PHENOLICS ARAMID
KL61-125/1 125 130 15 14.8 128.2 126.8 PHENOLICS ARAMID
KL61-125/3 125 130 14.2 14 128.2 126.8 PHENOLICS ARAMID
KL61-130 130 135 9.7 9.5 133.2 131.8 PHENOLICS ARAMID
KL61-130/1 130 135 15 14.8 133.2 131.8 PHENOLICS ARAMID
KL61-130/3 130 135 8.1 7.9 133.2 131.8 PHENOLICS ARAMID
KL61-135 135 140 9.7 9.5 138.2 136.8 PHENOLICS ARAMID
KL61-135/1 135 140 15 14.8 138.2 136.8 PHENOLICS ARAMID
KL61-135/2 135 140 8.1 7.9 138.2 136.8 PHENOLICS ARAMID
KL61-140 140 145 9.7 9.5 143.2 141.8 PHENOLICS ARAMID
KL61-140/1 140 145 15 14.8 143.2 141.8 PHENOLICS ARAMID
KL61-140/3 140 145 20 19.8 143.2 141.8 PHENOLICS ARAMID
KL61-145 145 150 9.7 9.5 148.2 146.8 PHENOLICS ARAMID
KL61-145/1 145 150 15 14.8 148.2 146.8 PHENOLICS ARAMID
KL61-150 150 155 15 14.8 153.2 151.8 PHENOLICS ARAMID
KL61-150/1 150 155 9.7 9.5 153.2 151.8 PHENOLICS ARAMID
KL61-150/2 150 155 12.5 12.3 153.2 151.8 PHENOLICS ARAMID
KL61-155 155 160 9.7 9.5 158.2 156.8 PHENOLICS ARAMID
KL61-155/1 155 160 15 14.8 158.2 156.8 PHENOLICS ARAMID
KL61-160 160 165 9.7 9.5 163.2 161.8 PHENOLICS ARAMID
KL61-160/1 160 165 15 14.8 163.2 161.8 PHENOLICS ARAMID
KL61-164 164 170 9.7 9.5 167.6 166.4 PHENOLICS ARAMID
KL61-165 165 170 9.7 9.5 168.2 166.8 PHENOLICS ARAMID
KL61-165/1 165 170 15 14.8 168.2 166.8 PHENOLICS ARAMID
KL61-170 170 175 9.7 9.5 173.2 171.8 PHENOLICS ARAMID
KL61-170/1 170 175 15 14.8 173.2 171.8 PHENOLICS ARAMID
KL61-174 174 180 15 14.8 177.6 176.4 PHENOLICS ARAMID
KL61-175 175 180 9.7 9.5 178.2 176.8 PHENOLICS ARAMID
KL61-175/1 175 180 15 14.8 178.2 176.8 PHENOLICS ARAMID
KL61-180 180 185 15 14.8 183.2 181.8 PHENOLICS ARAMID
KL61-180/1 180 185 9.7 9.5 183.2 181.8 PHENOLICS ARAMID
KL61-184 184 190 15 14.8 187.6 186.4 PHENOLICS ARAMID
KL61-185 185 190 9.7 9.5 188.2 186.8 PHENOLICS ARAMID
KL61-185/1 185 190 15 14.8 188.2 186.8 PHENOLICS ARAMID
KL61-190 190 195 9.7 9.5 193.2 191.8 PHENOLICS ARAMID
KL61-190/1 190 195 15 14.8 193.2 191.8 PHENOLICS ARAMID
KL61-194 194 200 20 19.8 197.6 196.4 PHENOLICS ARAMID
KL61-195 195 200 9.7 9.5 198.2 196.8 PHENOLICS ARAMID
KL61-195/1 195 200 15 14.8 198.2 196.8 PHENOLICS ARAMID
KL61-209 209 215 20 19.8 212.6 211.4 PHENOLICS ARAMID
KL61-210 210 215 25 24.5 213.2 211.8 PHENOLICS ARAMID
KL61-215 215 220 15 14.8 218.2 216.8 PHENOLICS ARAMID
KL61-219 219 225 20 19.8 222.6 221.4 PHENOLICS ARAMID
KL61-224 224 230 25 24.5 227.6 226.4 PHENOLICS ARAMID
KL61-229 229 235 20 19.8 232.6 231.4 PHENOLICS ARAMID
KL61-234 234 240 25 24.5 237.6 236.4 PHENOLICS ARAMID
KL61-235 235 240 25 24.5 238.2 236.8 PHENOLICS ARAMID
KL61-240 240 248 25 24.5 245 243 PHENOLICS ARAMID
KL61-244 244 250 25 24.5 247.6 246.4 PHENOLICS ARAMID
KL61-245/1 245 250 25 24.5 248.2 246.8 PHENOLICS ARAMID
KL61-245/2 245 250 15 14.8 248.2 246.8 PHENOLICS ARAMID
KL61-245/3 245 250 20 19.8 248.2 246.8 PHENOLICS ARAMID
KL61-250 250 255 40 39.5 253.2 251.8 PHENOLICS ARAMID
KL61-254 254 260 25 24.5 257.6 256.4 PHENOLICS ARAMID
KL61-254/1 254 260 30 29.5 257.6 256.4 PHENOLICS ARAMID
KL61-260 260 265 25 24.5 263.2 261.8 PHENOLICS ARAMID
KL61-279 279 285 25 24.5 282.6 281.4 PHENOLICS ARAMID
KL61-280 280 285 25 24.5 283.2 281.8 PHENOLICS ARAMID
KL61-294 294 300 35 34.5 297.6 296.4 PHENOLICS ARAMID
KL61-295 295 300 25 24.5 298.2 296.8 PHENOLICS ARAMID
KL61-315 315 320 25 24.5 318.2 316.8 PHENOLICS ARAMID
