KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

Shaanxi Kelong New Materials Technology Co., Ltd.
Contact Now

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

Brand Name : Kelong

Model Number : KLSB

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Name : Hydraulic Piston Rings

Material : POLYESTER FIBER, PHENOLIC RESIN

Temperature (max) °C : -40/+120

Sliding Speed (max)- m/s : 1.0

Style : Hydraulic Guiding Elements

Application : Excavators / Heavy duty cylinders

Contact Now

KLSB Produced From Synthetic Fabric And Phenolic Resin To Be Used In Rod And Piston Applications In Hydraulic Systems

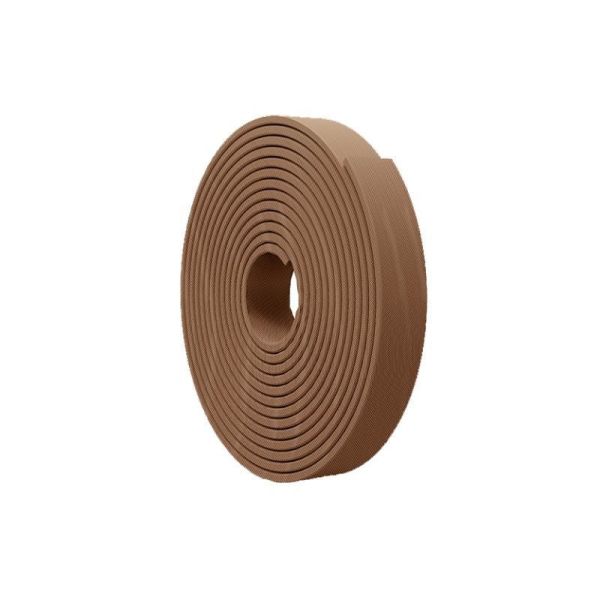

KLSB piston-rod guide rings are composite guiding elements, produced from syntetic fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Can be used in heavy and medium duty applications

• The high form stability at operating temperature range

• Easy installation

• Wide range of standard products

Area of Application

• Mobile machinery


• Mining industry


• Excavators


• Presses


• Heavy duty cylinders

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

a L (+0.2/-0) H MATERIAL
KLSB-2X10 2 10 9.8 PHENOLIC
RESIN
KLSB-2X15 2 15 14.8 PHENOLIC
RESIN
KLSB-2X20 2 20 19.8 PHENOLIC
RESIN
KLSB-2X25 2 25 24.8 PHENOLIC
RESIN
KLSB-2.5X5.6 2.5 5.6 5.5 PHENOLIC
RESIN
KLSB-2.5X9.7 2.5 9.7 9.5 PHENOLIC
RESIN
KLSB-2.5X10 2.5 10 9.8 PHENOLIC
RESIN
KLSB-2.5X15 2.5 15 14.8 PHENOLIC
RESIN
KLSB-2.5X20 2.5 20 19.8 PHENOLIC
RESIN
KLSB-2.5X25 2.5 25 24.8 PHENOLIC
RESIN
KLSB-3X15 3 15 14.8 PHENOLIC
RESIN
KLSB-3X20 3 20 19.8 PHENOLIC
RESIN
KLSB-3X25 3 25 24.8 PHENOLIC
RESIN
KLSB-4X15 4 15 14.8 PHENOLIC
RESIN
KLSB-4X20 4 20 19.8 PHENOLIC
RESIN
KLSB-4X25 4 25 24.8 PHENOLIC
RESIN
KLSB-4X30 4 30 29.8 PHENOLIC
RESIN
